Rocker Column Compression Type Load cell

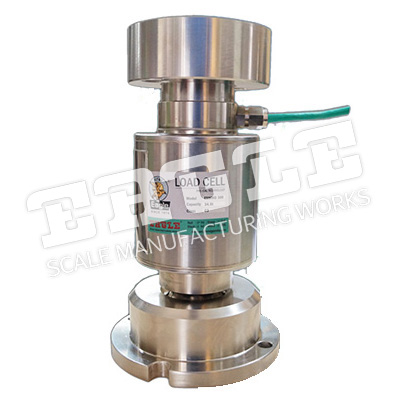

ESMWD 200 / ESMWD 300 - Rocker Column Compression Type Load cell unique bridge structure load cell with Anti Rotation Hexagonal mounting Assembly. This Model stainless steel high accuracy compression column cell is designed specifically for Truck Scale applications, but also has applications in tank and silo weighing.

Compression load cells are designed for the accurate measurements of compressive loads, weights and forces. They can be used in silo tanks, tank farms, vessels, Truck Scales and truck weighing. When a compressive force or load is applied, a load cell will produce a change in output.

Our load cells are designed to provide exceptional performance in a safe and predictable manner making them suitable for use in the toughest industrial environments. The compression load cells are easy to install and can be supplied with the relevant load mounting assemblies. They are also hermetically sealed to ensure optimum performance.

Send Inquiry
Rocker Column Compression Type Load cell

Rocker Column Compression Type Load cell

TECHNICAL PARAMETERS

  • Rated Load (E-Max) : 20, 30, 34.5, 40, 50, 60 t
  • Rated Output (mV/V) : 2.00 ± 0.01
  • Non-linearity : ±0.02% F.S
  • Hysteresis : ±0.02% F.S
  • Repeatability : ± 0.01% to ± 0.02% F.S
  • Creep (30 minutes) : ± 0.02% F.S
  • Zero Balance : ± 1.00% F.S
  • Temperature Effect on Zero : ±0.02% F.S
  • Temperature Effect on Output : ±0.02% F.S
  • Protection Class (IP) : IP68
  • Communication BPS : 9600/19200
  • Communication Mode : RS 485
  • Insulation Resistance (O) : = 3000M
  • Excitation Voltage : 7 to 15V DC
  • Compensated Temperature Range : -10°C to +50°C
  • Operation Temperature Range : -20°C to +60°C
  • Safe Overload : 150% F.S
  • Ultimate Safe Overload : 200% OF R.C
  • Cable : F4 x 16m

FEATURES

  • Pre-Calibrated technology (Collaboration with European technology)
  • No Need to Make Calibration (Just Plug & Weighing)
  • Strong Digital Signal provide accurate weighing
  • Profitability to Highest Weighing Accuracy
  • Nickel Plated Tool Alloys Steel
  • True Hermetically Sealing
  • Inbuilt Lightning Protection : Electronic Gas Discharge Tubes
  • Inbuilt Temp. Protection & Surge Protection
  • No Corner Error
  • No Analogue to Digital Converter
  • Predictive diagnostics simplify troubleshooting
  • Two Years Warranty in Eagle Make Load Cells
